World Record Validated
Derived from BSU India's 140-foot Bamboo Tower, Golden Book of World Records, 2024.

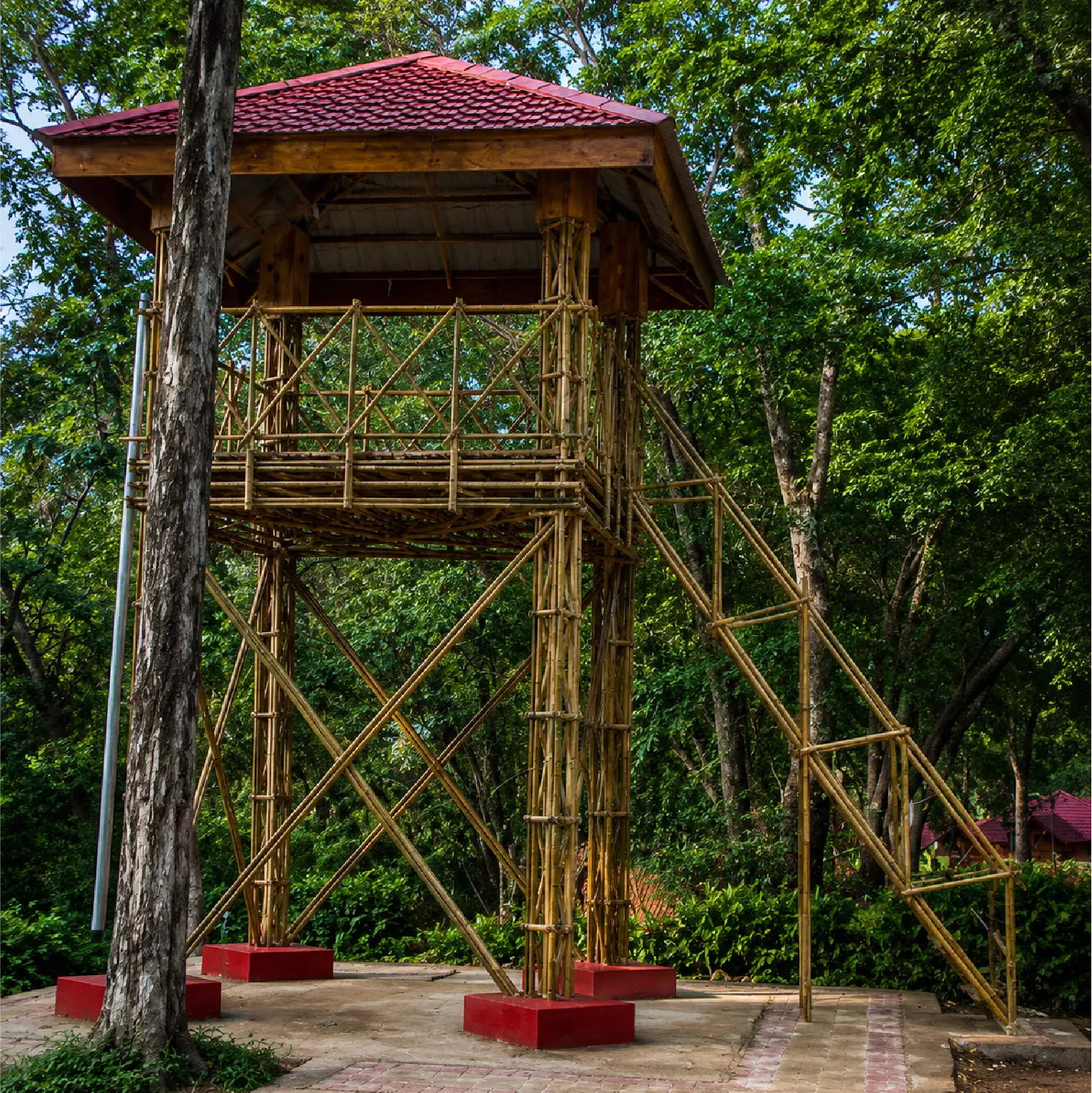

Watch Tower
Engineered Bamboo Watch Towers for Wildlife Observation and Forest Monitoring
The Bahu-Balli Watch Tower is an elevated engineered bamboo observation structure designed to provide visitors with access to wildlife sightlines, forest canopy views, and landscape panoramas beyond ground-level visibility. Deployed at safari trail junctions, waterbody banks, grassland edges, and eco-tourism destinations, the compact 3 m × 3 m structure delivers elevated viewing capability while maintaining a minimal ecological footprint.
The Watch Tower is engineered using the same Bahu-Balli lattice structural system that formed the basis of BSU India's 140-foot Bamboo Tower recognised by the Golden Book of World Records, 2024. This proven structural approach provides confidence in the safety, durability, and performance of the elevated platform system. In addition to visitor use, the structure supports forest department operations including wildlife monitoring, anti-poaching surveillance, habitat observation, and early fire detection activities.
Product Highlights
01
World Record Validated
02
Elevated Platform
03
Minimal Footprint
04
Dual-Use Deployment
05
25-Year Lifespan
Key Features
Deployment Zones & Use Cases
Safari Trail Junctions
Visitor observation points at key wildlife movement corridors
Waterbody Banks
Elevated viewing of waterhole and riparian wildlife activity

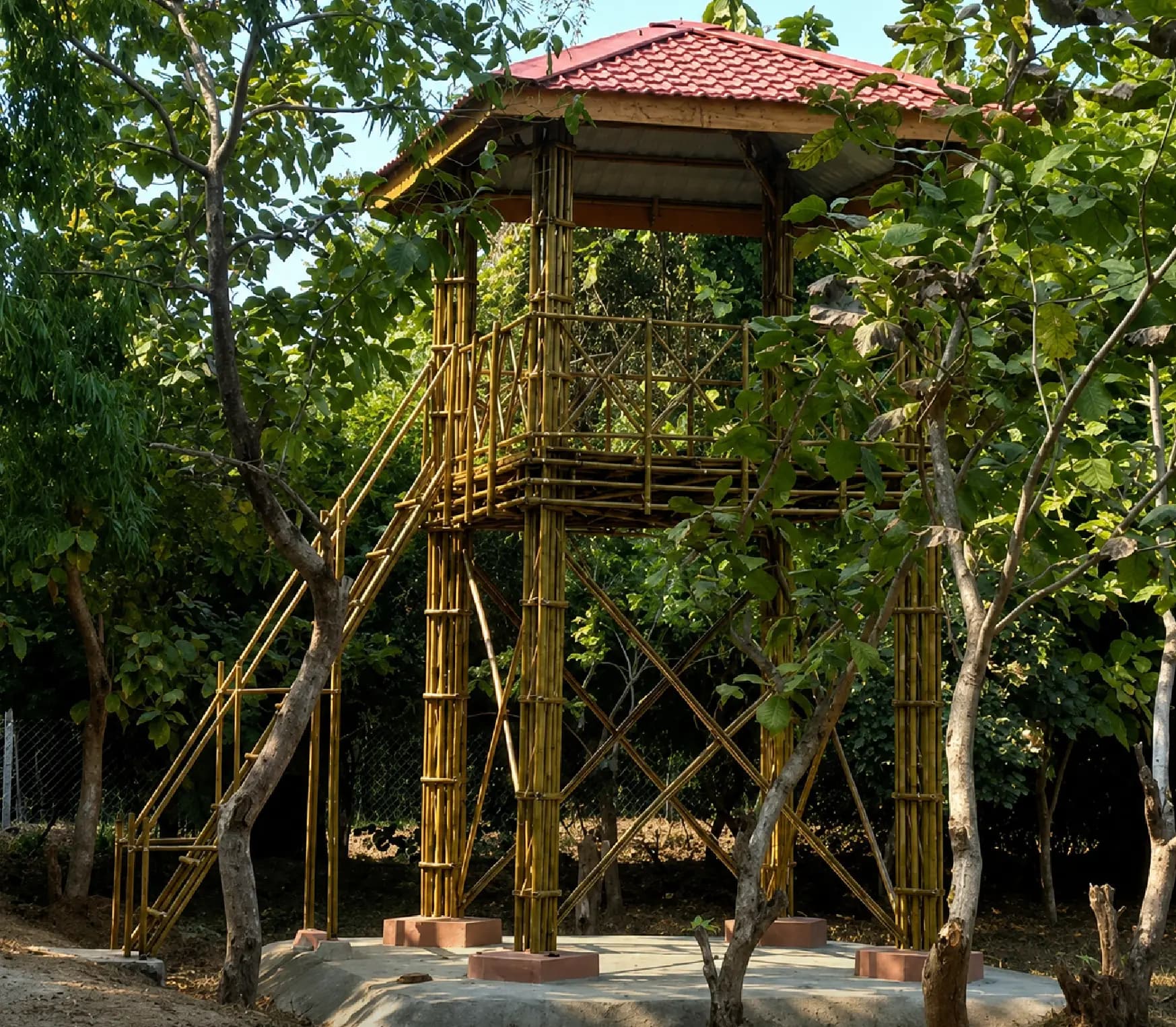

Grassland Edges
Panoramic observation across open habitat zones
Elevated Terrain
Landscape and canopy panoramas from naturally elevated positions
Tiger Reserves & National Parks
Visitor experience infrastructure integrated with eco-tourism circuits

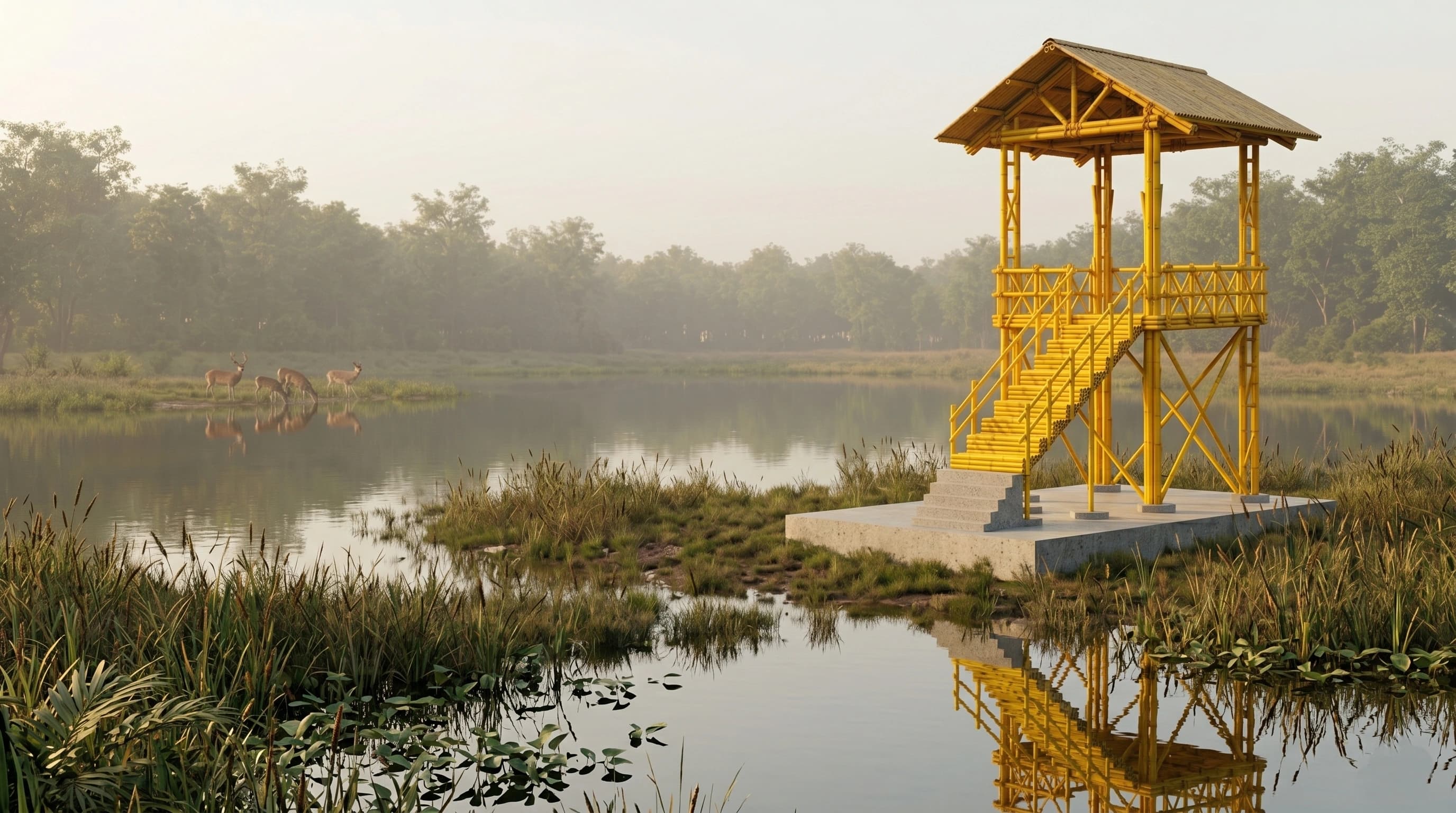

Forest Department Monitoring
Anti-poaching surveillance, wildlife census support, and fire detection
Technical Specifications
| Plan Dimensions | 3 m × 3 m |
|---|---|
| Total Height | Approximately 7.65 m to top of structure |
| Observation Deck Height | Approximately 3 to 3.5 m above ground level |
| Structural System | Bahu-Balli lattice-engineered bamboo columns, bracing, and steel joinery at connections |
| Access & Roofing | Bamboo ladder or staircase; bamboo purlin and MS colour-coated sheet canopy |
| Treatment & Lifespan | VPI Creosote + HDPE colour coating; 25-year minimum design lifespan |
| Indicative Quantity | 100 units across programme |
| Unit Cost (Indicative) | Rs. 7.86 Lakhs per unit |
Ecological Advantage
The Bahu-Balli Watch Tower is designed to minimise site disturbance during installation and throughout its operational life. In most soil conditions, the structure requires no concrete columns and no deep-excavation foundations, helping preserve existing terrain and vegetation.
The lattice bamboo frame occupies a compact footprint, with four primary column positions within a 3 m × 3 m plan area, allowing the surrounding habitat to remain largely undisturbed. At the end of its service life, the structure can be dismantled and removed with minimal residual impact to the site.
For forest departments, conservation agencies, and eco-tourism operators, the Bahu-Balli Watch Tower provides elevated observation infrastructure that combines proven structural performance with a design approach aligned to the ecological objectives of protected landscapes.
Plan Your Monitoring Infrastructure
For structural drawings, unit specifications, layout plans, and programme-scale supply documentation:
